SERVO PRESS (OACIS-P)

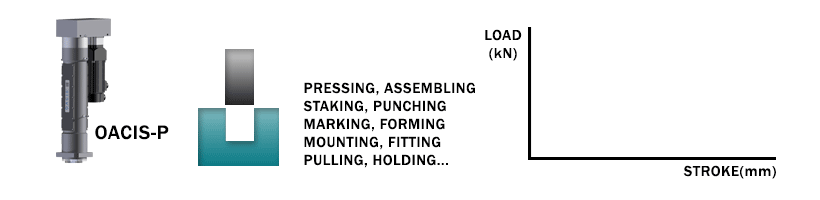

OVERVIEW

FEATURES

SYSTEM

  • Precise control with high reliable response.
  • Easy and fast programming with clear and flexible logic.
  • A variaty of exclusive functions for pressing.
  • Affordable to add measuring sensors up to max 6 analog inputs and 2 digital encoder inputs of OACIS-2X(C) for enhanced system.

SERVO PRESS

  • High endurable hardware with compact size.
  • High precise load control and measurement.
  • Available to install additional external loadcell.
  • Available to be equipped with horizontally as well.
  • Available to control both basic push(press) and pull.

SAFETY

  • Applicable to design electric circuit to meet ISO standard safety requirement.

MODEL DESIGNATION

OACIS

-

P

010

-

300

-

200

1 2 3 4
1 CATEGORY P = PRESS
2 MAX LOAD 10 kN - Available to control both push(press, +10kN) and pull(-10kN).
3 STROKE 300 mm - Standard Stroke is 300 mm (except for some models).
- Custom required stroke is avaliable.
4 MAX SPEED 200 mm/s - Custom speed up available.
OPTION 1 BRAKE Default included - None brake available for all models.
OPTION 2 POWER INPUT Default 380V 3 Phase - 220V avaliable.
- 220V can be used with 1 or 3 phase.
OPTION 3 MOTOR CABLE Default 5 m - It means a distance between a servo press
and electric control pannel.
- Custom length available.

Tool Weight: Up to 1% of the max load

PRODUCT LINE UP

MODEL MAX LOAD
(kN)
STROKE
(mm)
MAX SPEED
(mm/s)
POWER
INPUT
DRAWINGS
OACIS-P001-150-200 1 150 200 220V 2D 3D
OACIS-P002-150-200 2 150 200 220V 2D 3D
OACIS-P003-300-200 3 300 200 220V 2D 3D
OACIS-P005-300-200 5 300 200 220V 2D 3D
OACIS-P010-300-200 10 300 200 220V / 380V 3 phase 2D 3D
OACIS-P015-300-200 15 300 200 220V / 380V 3 phase 2D 3D
OACIS-P020-300-200 20 300 200 220V / 380V 3 phase 2D 3D
OACIS-P025-300-200 25 300 200 220V / 380V 3 phase 2D 3D
OACIS-P030-300-200 30 300 200 220V / 380V 3 phase 2D 3D
OACIS-P035-300-150 35 300 150 220V / 380V 3 phase 2D 3D
OACIS-P040-300-150 40 300 150 220V / 380V 3 phase 2D 3D
OACIS-P050-300-150 50 300 150 220V / 380V 3 phase 2D 3D
OACIS-P060-300-150 60 300 150 220V / 380V 3 phase 2D 3D
OACIS-P070-300-150 70 300 150 220V / 380V 3 phase 2D 3D
OACIS-P080-300-150 80 300 150 220V / 380V 3 phase 2D 3D
OACIS-P090-300-150 90 300 150 220V / 380V 3 phase 2D 3D
OACIS-P100-300-150 100 300 150 220V / 380V 3 phase 2D 3D
OACIS-P200-400-100 200 400 100 220V / 380V 3 phase
OACIS-P300-400-080 300 400 080 220V / 380V 3 phase
OACIS-P400-400-065 400 400 065 220V / 380V 3 phase
